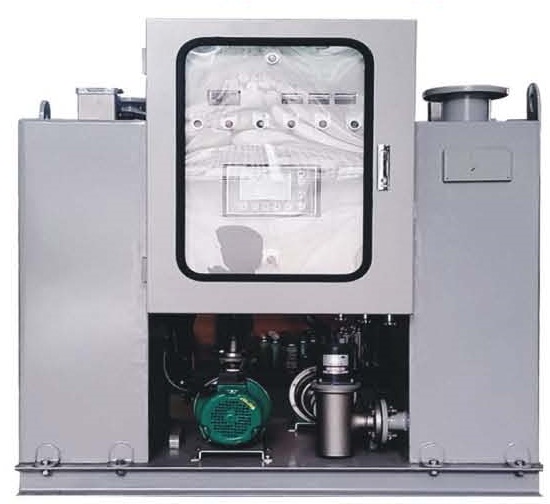

Sewage Treatment Plant
-
Korea Brand
-
Meet IMO MEPC. 227(64)
-
Certificate：BV
SKmarintec's Electrolysis Sewage Treatment Plant is especially developed and designed for marine sewage treatment system.
SM series consist of 8 models, the biggest one's capacity is up to 300 persons usage per day on vessel. Furthermore, as using by special design, we can enlarge the capacity of sewage treatment up to 500 persons and more.
SM series in electrolysis sewage treatment plant Should be followed the worldwide compliance with MEPC. 227(64) approved for domestic compliance with Marine Pollution Prevention Act. SM-P series consist of 5 main parts, which are sewage tank, transportation network of pipes and pump, tubular electrolysis section, effluent tank, control box.
|
Electrolysis Sewage Treatment Plant
 |
|
Model |
Users |
Capacity
(m3 / day) |
Organic Load
(kg BOD5/day) |
Lenght
(mm) |
Width
(mm) |
Height
(mm) |
Weight
(kgs) |
|
SM-16P |
16 |
1.1 |
0.65 |
1,100 |
770 |
1,230 |
430 |
|
SM-25P |
25 |
1.7 |
1.01 |
1,200 |
770 |
1,230 |
463 |
|
SM-35P |
35 |
2.4 |
1.42 |
1,200 |
770 |
1,230 |
496 |
|
SM-45P |
45 |
3.1 |
1.83 |
1,200 |
870 |
1,230 |
528 |
|
SM-60P |
60 |
4.2 |
2.44 |
1,250 |
870 |
1,430 |
561 |
|
SM-80P |
80 |
5.6 |
3.25 |
1,350 |
970 |
1,430 |
594 |
|
SM-100P |
100 |
7.0 |
4.06 |
1,350 |
970 |
1,430 |
627 |
|
SM-150P |
150 |
10.5 |
6.10 |
1,450 |
970 |
1,430 |
640 |
|
SM-300P |
300 |
22.5 |
13.07 |
2,250 |
970 |
1,630 |
973 |
Voltage： Vac. 220 / 380 / 415 / 440
50 / 60 Hz, 3ph |
-

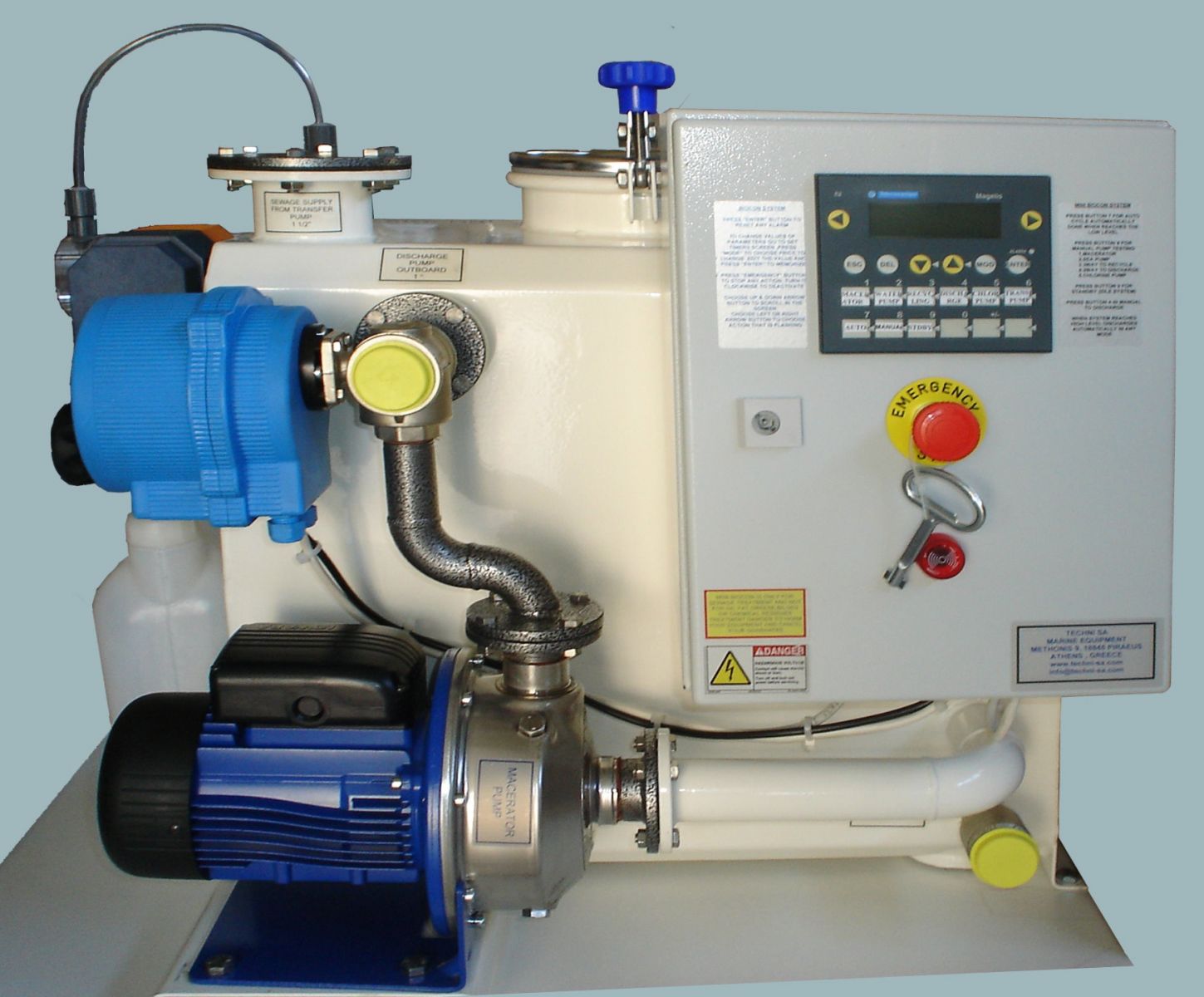

Greece Brand
-
Meet IMO MEPC.159(55)
-
Certificate：DNV
|
Users |
Under 42 person |
Capacity
(m3 / day) |
2.54 |
Dimension
(mm) |
L |
850 |
|
W |
600 |
|
H |
750 |
|
Net Weight (kg) |
80 |
|
Sewage Volume (liter) |
Depends on nombers of users |
|
|
|
|
|
